7 ASSEMBLY INSTRUCTIONS Fig. 1 INSTALLING THE CUTTING ATTACHMENT SHIELD Use the following instructions if the cutting attachment shield on your unit is not installed or if you ever need to re-install it. Install on a Straight Shaft (YM1500) 1. Slide the cutting attachment shield into the shield mount on the cutting attachment.
Align the screw holes in the shield with the holes in the cutting attachment (Fig. Place a hex lock nut into one of the three recessed holes on the top of the cutting attachment shield (Fig 3). Install a screw into the hole from the bottom of the cutting attachment shield and screw it into the nut installed in step 2 (Fig 3). Do not tighten. Repeat steps 2 and 3 until all three screws have been started, then tighten securely.
2 CHAPTER 1 • Linear Equations in Linear Algebra. A basic principle of this section is that row operations do not affect the solution set of a linear. Linear algebra tutorial.

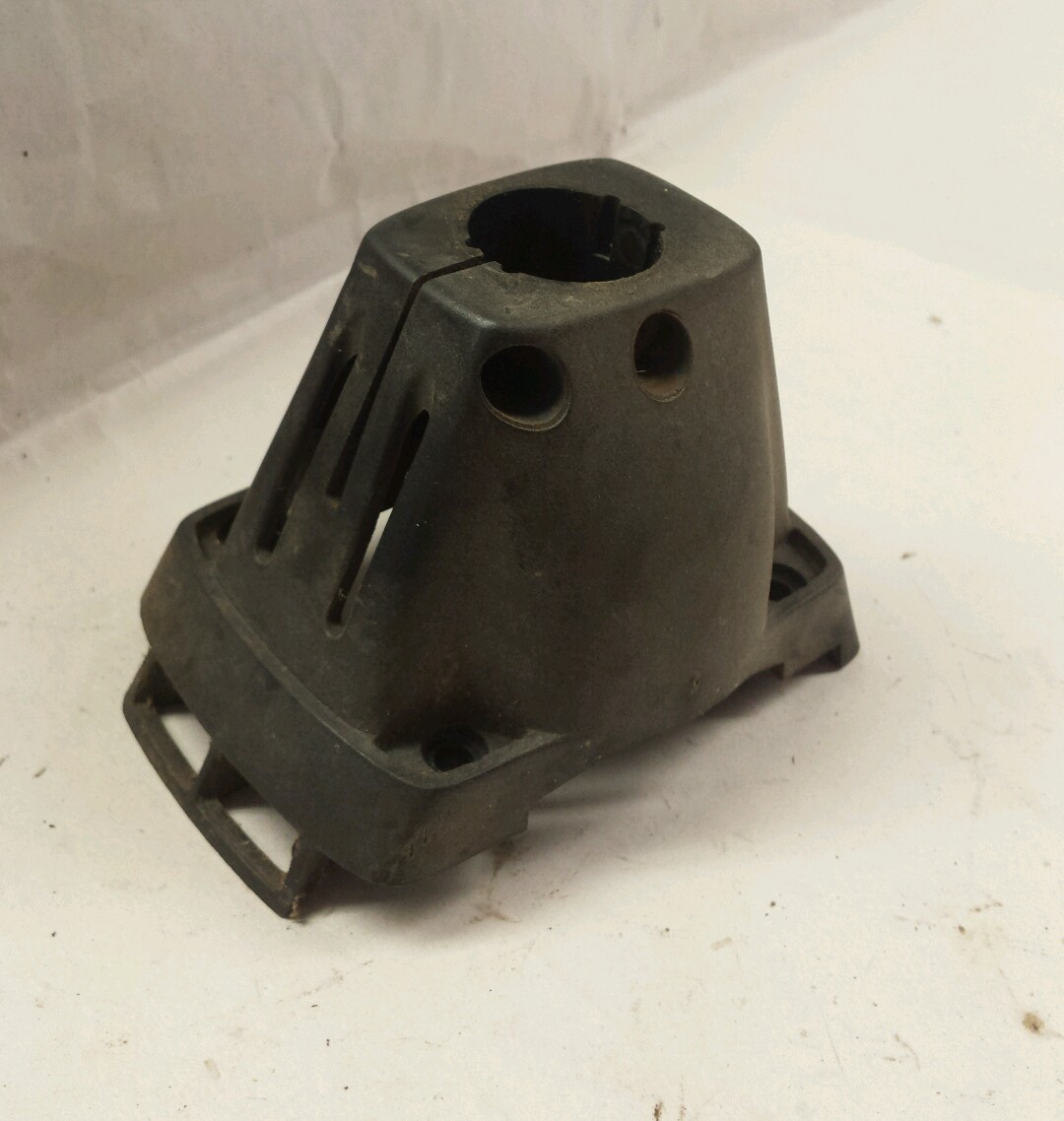

3 Screws (3) Shaft Housing Hex Lock Nut Cutting Attachment Shield Cutting Attachment Recessed Holes Shield Mount Install on a Curved Shaft (YM400) 1. Place the cutting attachment shield onto the shaft housing. Be sure the guard mounting bracket slides into the slot on the edge of the cutting shield. Rotate the shield into place, counterclockwise. The holes in the guard mounting bracket and cutting attachment shield will line up (Fig. From inside the cutting attachment shield, push the square bolt through the hole until the threaded end protrudes through the guard mounting bracket (Fig. Put the washer on the bolt, then screw the wing nut onto the bolt and tighten (Fig.
Bissell Proheat 2x User Manual
Never operate the trimmer without the cutting attachment shield in place to prevent serious personal injury. WARNING: Bolt Washer Wing Nut Tighten Shaft Grip D-Handle INSTALL AND ADJUST THE D-HANDLE 1. Push the D-handle down onto the shaft housing so that the handle slants towards the shaft grip. Make sure the squared bolt hole in the handle is to the right (Fig. Insert the shoulder bolt into the squared hole in the handle and push through.
On the left side of the handle, place the washer on the bolt, then screw the wing nut onto the bolt. Do not tighten until you make the handle adjustment. Rotate the D-handle until the grip is above the top of the shaft housing.
Place it a minimum of 6 inches (15.24 cm) from the end of the shaft grip. Minimum 6 inches (15.24 cm) Shaft Housing 4. While holding the unit in the operating position (Fig. 9), arrange the D-handle in the location that provides you the best grip. Tighten the wing nut until the D-handle is secure. Guard Mounting Bracket Shaft Housing Square Bolt Cutting Attachment Shield Guard Mounting Bracket Wing Nut Washer Fig.
